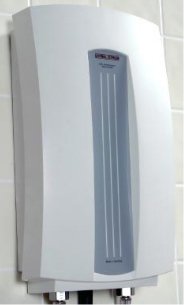

Stiebel Eltron DHC 6-2 Point-of-Use Tankless Water Heater
Stiebel Eltron DHC 6-2
Our Price: US$179.00
Limited Quantity of Factory Refurbished units available.
Save an additional $30!
- more info -
The Stiebel Eltron DHC series tankless water heaters are economical, ultra-compact, attractive, and well built point-of-use tankless water heaters designed for basic point of use applications such as bathroom sinks, kitchens, commercial washrooms, emergency eyewash stations, etc. The DHC series is best suited to applications with a relatively constant flow rate. If the flow rate is likely to fluctuate in your application due to varying water demands or changes in well pump pressures, etc., we recommend that you consider a DHC-E Series tankless water heater with thermostatic control and flow-based power modulation technology.
Due to its small size, the Stiebel Eltron DHC 6-2 conveniently fits directly under the sink or adjacent cupboard or closet, so it delivers hot water to the sink almost instantly. By locating the heater right near the point-of-use, you can also eliminate thermal heat loss commonly associated with long pipe runs. If the DHC 6-2 can supply all of the hot water needs for the room, in new construction applications, you also eliminate the need to run a hot water line all the way from the main central water heater which can save you significant money in plumbing and material cost.
By producing hot water on demand only as it is being used, the DHC 6-2 is extremely energy efficient. A sophisticated water flow sensor recognizes when hot water is being used and when it has been turned off, so the unit will activate and deactivate automatically so it only runs when you are actually using water. This eliminates standby thermal heat losses associated with traditional tank type water heaters. Accordingly, you can expect to see a significant cost reduction over the operating cost of a conventional water heater.
|Maximum Flow Rate in Gallons Per|
Minute at 105F Output Temperature
|Incoming Water Temp:||Flow Rate (GPM)|
brochure for temp rise chart based on 208v input or
email us for details.
An exclusive scald-guard thermostat keeps the water temperature within safe limits at all times. Additionally, the DHC water heaters are equipped with a safety high-limit with manual reset. The rugged all copper design ensures many years of reliable service.
The Stiebel Eltron DHC 6-2 is not recommended for whole house use. For more information on whole house models, see our Stiebel Eltron Tempra Series Whole House Tankless Water Heaters.
Stiebel Eltron DHC 6-2 Tankless Water Heater Specifications
|@ 240 volts||@ 208 volts|
|KW||6.0 KW||4.5 KW|
|Voltage:||208 to 240 volts / single phase / 50 - 60 Hz|
|Max. Amps:||25 AMPS||22 AMPS|
|Breakers Required:*||1 x 25 AMP breaker|
|Wiring:*||Minimum #10 AWG Copper|
|Dimensions:||14.25 x 7.9 x 4.1" (36 x 20 x 11 cm)|
|Weight:||4.6 lbs (2.1 KG)|
|Pipe Fittings:||1/2" NPT|
|Activation Flow Rate:||0.47 GPM / 1.8 LPM|
|Max. Water Pressure:||150 psi|
|Warranty:||Manufacturer's 3 Year Warranty|
|Safety:||ETL Listed (US / Canada)|
|Protection:||scald guard thermostat and thermal hi-limit cut-out switch|
* Breaker size and wire gauge must meet all applicable local, state, provincial, and national electrical codes for your area - these are only guidelines that will apply to most installations. Please consult your electrician for more details.
